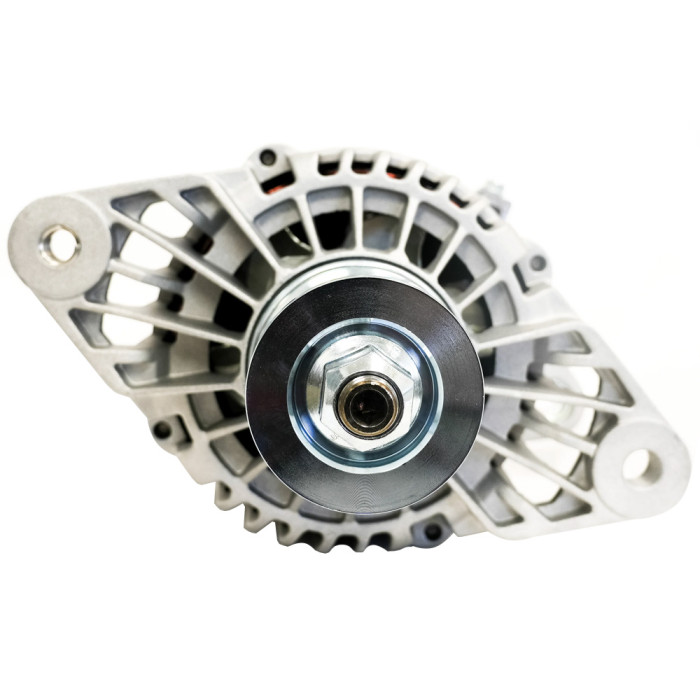

ARCO Marine Zeus A115/3500W 24V HD Hight Output Alternator - J180 Mount [4412]
Our Price: $1,087.00
What's this?
Zeus A115/3500W 24V HD Hight Output Alternator - J180 Mount
ARCO Zeus Heavy Duty Alternator is engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.
Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.
Features:
- Replace your noisy generator!
- Suitable for most diesel applications
- Designed for extended duty operation
- Engineered for high energy production
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance, with dual internal fans
- Reduces the need for a generator by creating additional power with your engine.
- External Regulation Required
Regulation:
- External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.
Specifications:
- Voltage: 24V
- Field Type: P
- Rotor Poles: 12
- Weight: 18.7 lb (8.5 kg)
- Regulation: External Only (EX)
- Cut-In RPM: 1,288
- Maximum Alt RPM: 10,000
- Rear Battery Post: M8 Thread
- Standard Pulley: K8 59 mm
- Shaft Diameter: 7/8 in (22.22 mm)
- Avalanche Diodes: 50 amps
- Max Output (Cold): 132 amps
- Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
- Sustained Idle Output (Hot, 3,000 RPM): 89 amps
- Max Continuous Operating Temperature: 125°C
Brochure (pdf)
