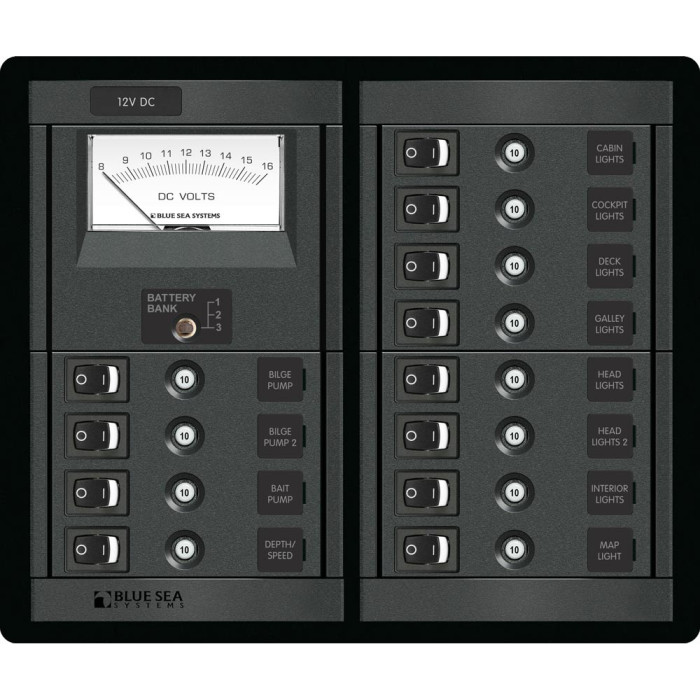

Blue Sea 1464 12 Position Switch CLB + Meter Square [1464]
Our Price: $370.00
What's this?
12 Position Switch CLB + Meter Square
Features:
- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 12
- Nominal Voltage: 12V DC
- Maximum Amperage*: 120A
- Height: 7.75" (196.85mm)
- Width: 9.25" (234.95mm)
- Depth: 3.50" (88.9mm)
- Weight: 4.29lb (1.95kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(12) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Box Dimensions: 6"H x 9"W x 13"L WT: 3.65 lbs
- UPC: 632085014643
Quick Guide (pdf)
Owner's Manual (pdf)
