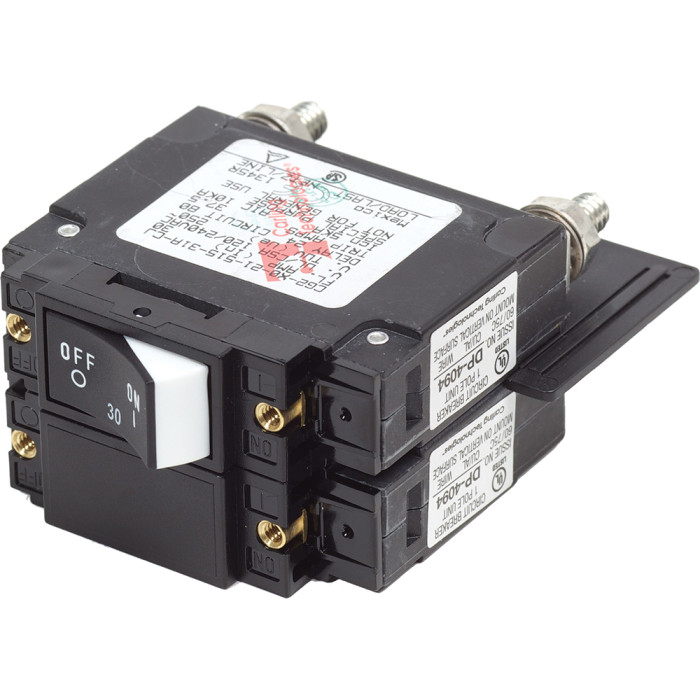

Blue Sea 7466 UL-489 Circuit Breaker - 30A Raised Rocker [7466]
Our Price: $130.99
7466 UL-489 Circuit Breaker - 30A Raised Rocker
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage: 30A AC
- Actuator Style: Raised Rocker
- Poles: 2
- Maximum Voltage: 250V AC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 SS
- Mounting Screw Torque: 8 in-lb (0.9 Nm)
- Switching Cycles: 10000
- Weight: 0.23lb (0.1 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 30a
- Box Dimensions: 2"H x 4"W x 8"L WT: 0.65 lbs
- UPC: 632085074661
7466 UL-489 Circuit Breaker - 30A Raised Rocker
