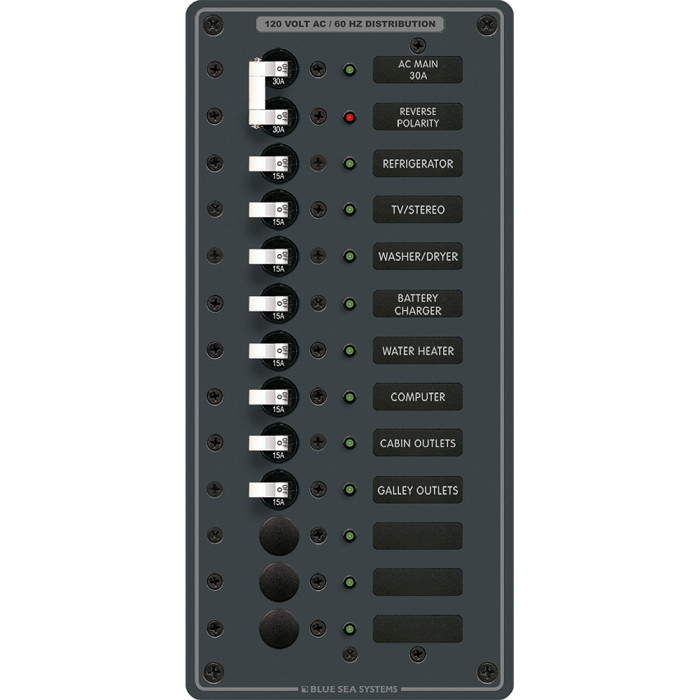

Blue Sea 8485 AC Main + 11 Positions [8485]
Our Price: $536.00
What's this?
Main + 11 Positions
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual Labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Voltage: 120v
- AC/DC: AC
- Max Breaker Quantity: 11
- Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
- UPC: 632085084851
Quick Guide (pdf)
Owner's Manual (pdf)
Main + 11 Positions
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual Labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Voltage: 120v
- AC/DC: AC
- Max Breaker Quantity: 11
- Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
- UPC: 632085084851
Quick Guide (pdf)
Owner's Manual (pdf)
Main + 11 Positions
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual Labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Voltage: 120v
- AC/DC: AC
- Max Breaker Quantity: 11
- Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
- UPC: 632085084851
Quick Guide (pdf)
Owner's Manual (pdf)
Main + 11 Positions
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Maximum panel amperage - 50 Amperes
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual Labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Voltage: 120v
- AC/DC: AC
- Max Breaker Quantity: 11
- Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
- UPC: 632085084851
Quick Guide (pdf)
Owner's Manual (pdf)
| SKU | CWR-20864 |
|---|---|
| Price | $536.00 |
| Brands | Blue Sea Systems |
| Manufacturer's Suggested Retail Price | $905.99 |
| UPC | 632085084851 |
