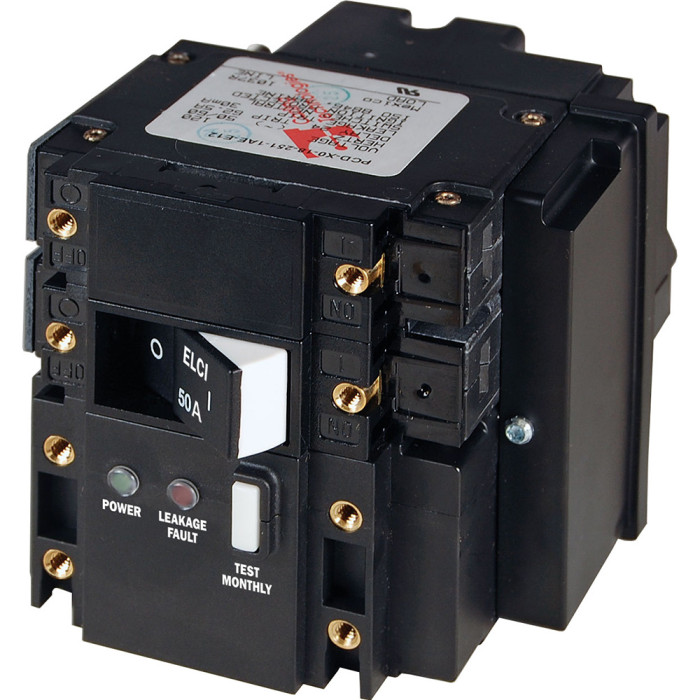

Blue Sea C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A [3093]
Our Price: $634.00
What's this?
C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
Features:
- Trips on short circuits, overloads, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 120V AC per pole & 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic (trip free)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35° C
- Maximum Operating Temperature: 66° C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 1.20 lb. (0.54 kg)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 50a
- Box Dimensions: 5"H x 5"W x 6"L WT: 1.2 lbs
- UPC: 632085030933
Quick Guide (pdf)
