Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601]
Our Price: $249.90

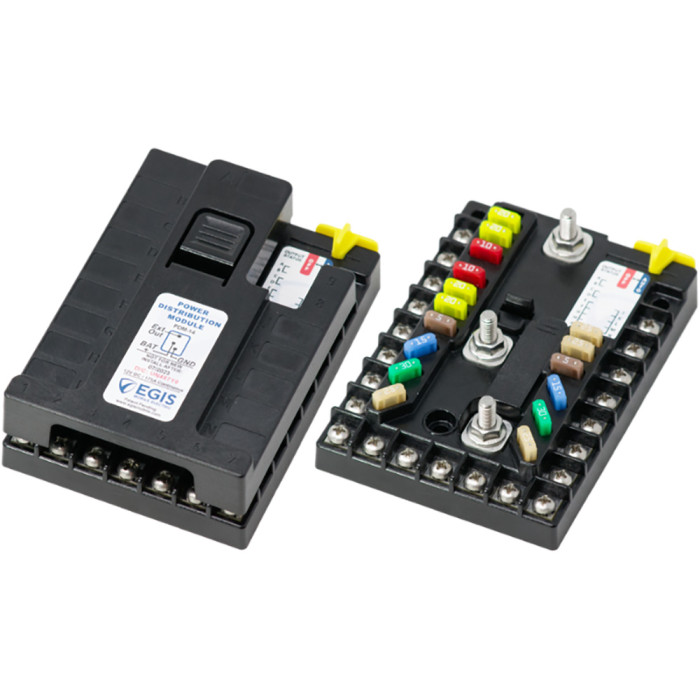

PDM 14 Circuit + Ground 175A 12V with Kill Switch
Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit: 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay 0-10 hrs
- Optional low voltage protection 11-12.2 volts
- Offload current draw 1.3 mA
Quick Guide (pdf)
