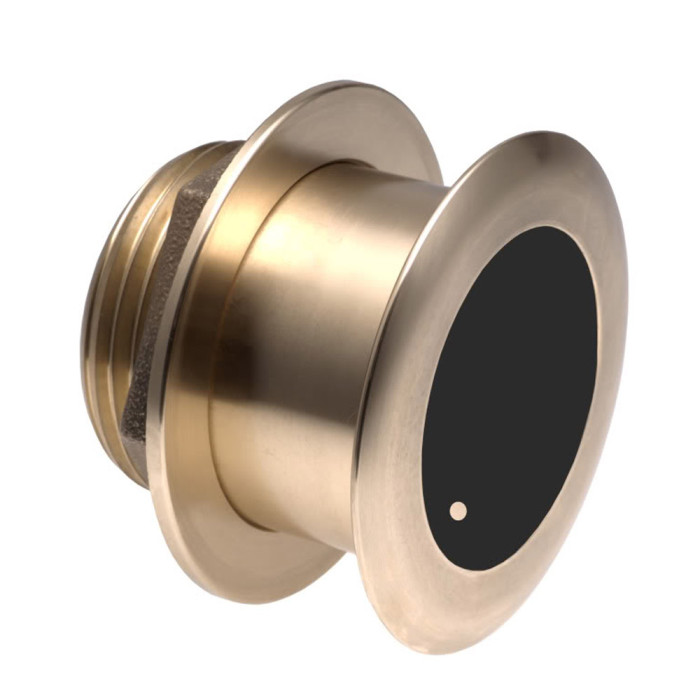

Garmin B175H Bronze 20 Degree Thru-Hull Transducer - 1kW, 8-Pin [010-11937-22]
Our Price: $1,399.99
Airmar B175H
w/20° Tilt
1kW
Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High
- Cable Length (Feet): 39'
- Temperature: Yes
- Pins: 8
- Speed Included: No
- Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs
- UPC: 753759995706
Owner's Manual (pdf)
Brochure (pdf)
