Garmin B265LM Bronze Thru-Hull Mount Transducer w/Depth & Temperature [010-11647-20]
Our Price: $2,249.99

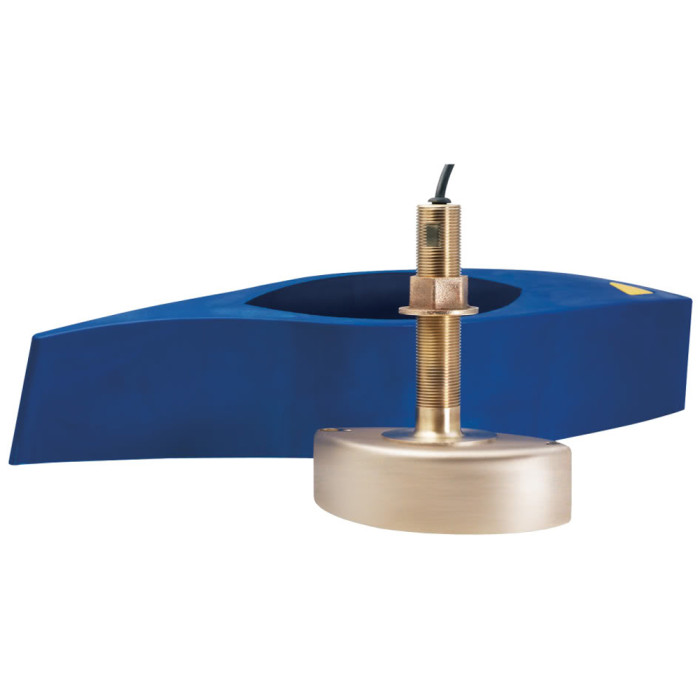

B265LM Bronze Thru-Hull Mount Transducer with Depth & Temperature
Garmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.
This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GSD™ 26 CHIRP Professional Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: Bare Wires
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: Low/Medium
- Cable Length (Feet): 39'
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs
- UPC: 753759972141
B265LM Bronze Thru-Hull Mount Transducer with Depth & Temperature
Garmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.
This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GSD™ 26 CHIRP Professional Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: Bare Wires
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: Low/Medium
- Cable Length (Feet): 39'
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs
- UPC: 753759972141
B265LM Bronze Thru-Hull Mount Transducer with Depth & Temperature
Garmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.
This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GSD™ 26 CHIRP Professional Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: Bare Wires
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: Low/Medium
- Cable Length (Feet): 39'
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs
- UPC: 753759972141
B265LM Bronze Thru-Hull Mount Transducer with Depth & Temperature
Garmin's best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail.
This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GSD™ 26 CHIRP Professional Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Pins: Bare Wires
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: Low/Medium
- Cable Length (Feet): 39'
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 7"H x 18"W x 26"L WT: 24.2 lbs
- UPC: 753759972141
| SKU | CWR-56845 |
|---|---|
| Price | $2,249.99 |
| Brands | Garmin |
| Manufacturer's Suggested Retail Price | $2,249.99 |
| UPC | 753759972141 |
