GROCO G-Gate Hub GROCO to Garmin [G-GATE-G]
Our Price: $724.00
What's this?

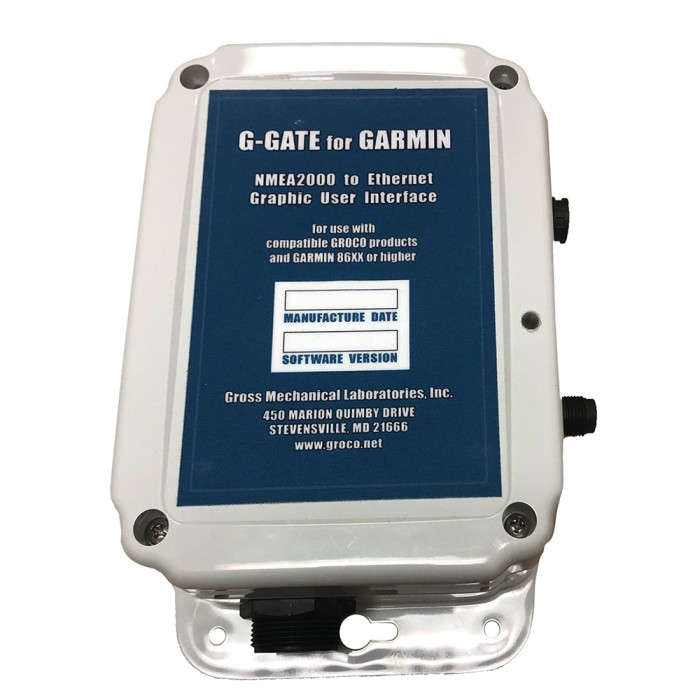

G-Gate Hub GROCO to Garmin
G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.
Power Requirements & Limits:
- For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
- For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
- Electronics voltage protection limit = 30VDC
- Typical current draw = 1 amp, 3 amps peak and inrush
G-Gate Hub GROCO to Garmin
G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.
Power Requirements & Limits:
- For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
- For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
- Electronics voltage protection limit = 30VDC
- Typical current draw = 1 amp, 3 amps peak and inrush
G-Gate Hub GROCO to Garmin
G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.
Power Requirements & Limits:
- For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
- For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
- Electronics voltage protection limit = 30VDC
- Typical current draw = 1 amp, 3 amps peak and inrush
G-Gate Hub GROCO to Garmin
G-Gate module uses the vessel's NMEA2000 (N2K) backbone to coordinate and display data from up to 40 E-Valves (or other compatible devices) that are also operating on the N2K backbone. G-Gate uses its embedded ethernet, HTML5, and TPC/IP capability to function as an application server and to display control graphics on the vessel MFD. G-Gate is a Garmin OneHelm industry partner.
Power Requirements & Limits:
- For 12VDC Systems: 12VDC nominal (8.5VDC minimum; 16VDC maximum
- For 24VDC Systems: 24VDC nominal (16VDC minimum; 28VDC maximum
- Electronics voltage protection limit = 30VDC
- Typical current draw = 1 amp, 3 amps peak and inrush
| SKU | CWR-87033 |
|---|---|
| Price | $724.00 |
| Brands | GROCO |
| Manufacturer's Suggested Retail Price | $1,153.00 |
