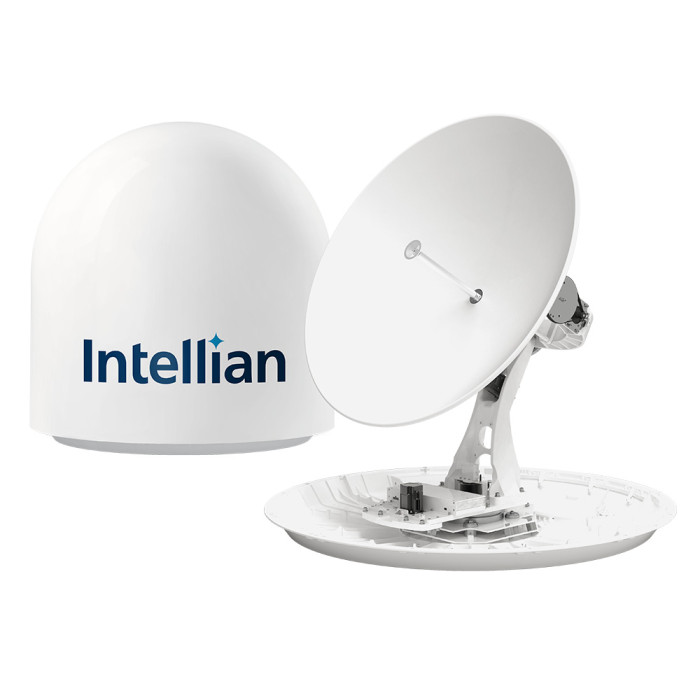

Intellian t100N 1M Maritime Global Satellite TV Antenna System In v100NX Matching Radome [T4-101BW3]
Our Price: $16,260.00
What's this?
t100N 1M Maritime Global Satellite TV Antenna System In v100NX Matching Radome
1M Reflector Ku-band global satellite TV system. The t100N provides outstanding performance with a 1m reflector with the added benefits of all hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s t-Series antenna reduces the number of spare parts required.
Features:
- Matching dome solution - Matching dome solution for the highly popular 1m-class VSAT antenna family
- Television everywhere - WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.
- Wi-Fi connectivity - The Wi-Fi function enables the ACU to be wirelessly connected. Any kind of wireless device, such as PCs, laptops, and smartphones, can be used to connect to the ACU to manage and control the antenna system.
- Unlimited azimuth range - With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.
- Picture Perfect - Ideal for larger yachts, luxury vessels, and wherever symmetry and aesthetics are important on board. A complementary system for the Intellian 1m VSAT antennas. Matching TV and NX radomes.
- Fully integrated solution - With its Wi-Fi-enabled ACU, users can connect wirelessly to the antenna using AptusNTV. AptusNTV offers users instant diagnostics, performance logging functions, and one-touch updates of firmware and the satellite library. Programmable WorldView™ Ku-band LNB. DVB-S2 Digital TV reception.
Technical Specifications:
- Radome Dimensions - 54.3" (D) x 57.4" (H)
- Reflector Diameter - 41.3"
- Weight - 205lbs
- Azimuth Range - Unlimited
- Elevation Range - -15° - +110°
- Cross-Level Range - ±35°
- Rx Frequency - Ku-Band: 10.7 -12.75 GHz
- Rx Gain - > 40.7 dBi @ 11.7 GHz (w/o Radome)
- LNB Type - Ku-Band WorldView Pre-Programmable
- EIRP - 41.5 dBW (Min.)
- Polarization - Linear & Circular
- Stabilization Accuracy - 0.2° max in the presence of specified ship motions
- Ship Motion (@ 6 seconds) - Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²
Specifications:
- Antenna Dish Diameter: 54.3"
- Dome Weight (lbs): 205lbs
Brochure (pdf)
