KICKER KXMA Zone Volume Controller [48KXMARLC]
Our Price: $329.99
What's this?

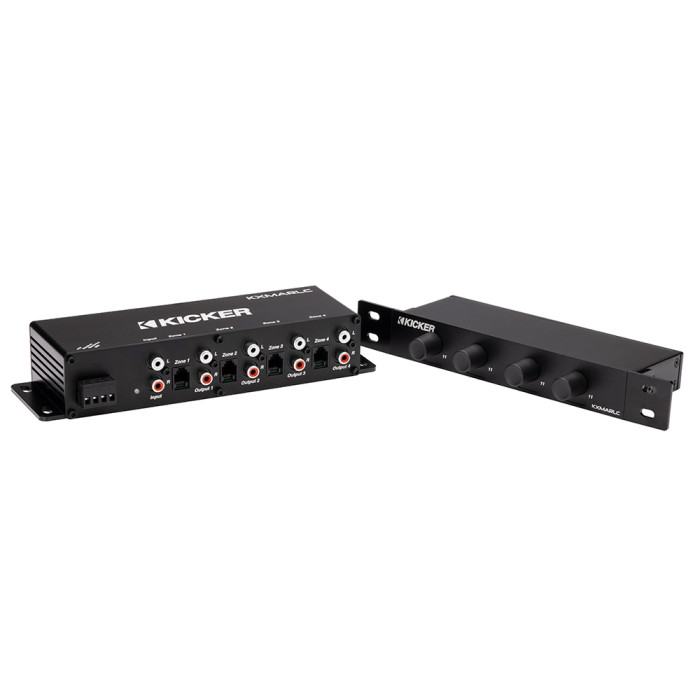

KXMA Zone Volume Controller
Command precise volume in up to four independent zones on your boat or RV! This universal zone control distributes a stereo RCA signal from your media center/source unit to as many as four independent stereo RCA outputs.
The built-in line driver delivers a clean signal of up to 8 volts to each channel so your amplifier is getting the cleanest signal possible. Higher input voltage into your amplifier allows you to set your gains lower and keep system noise down for the cleanest sound possible!
KXMARLC is compatible with any amplifier that features pre-amp level inputs, and it’s perfect for large, multi-amplifier systems where you want ultimate control over the boat or vehicle’s volume levels.
Features:
- Comes with a hide-away processor unit and a half-DIN remote zone controller
- The preamp section allows for lower gain settings, increased noise rejection, and better sound
- The large knobs provide the easiest way of adjusting individual zone-level volumes
- Includes amp remote turn-on output
- Includes customizable labels for naming your zones
- Comes with all installation hardware, and the hardware required to surface- or flush-mount the remote zone controller
Technical Specifications:
- Rated Output Per Channel, All Channels Driven (1kHz,14.4v DC, THD < 1%) - 8V
- Input Impedance - 10,000 Ohms
- Output Impedance - 100,000 Ohms
- Frequency Response - 20-20,000Hz (±1dB)
Owner's Manual (pdf)
KXMA Zone Volume Controller
Command precise volume in up to four independent zones on your boat or RV! This universal zone control distributes a stereo RCA signal from your media center/source unit to as many as four independent stereo RCA outputs.
The built-in line driver delivers a clean signal of up to 8 volts to each channel so your amplifier is getting the cleanest signal possible. Higher input voltage into your amplifier allows you to set your gains lower and keep system noise down for the cleanest sound possible!
KXMARLC is compatible with any amplifier that features pre-amp level inputs, and it’s perfect for large, multi-amplifier systems where you want ultimate control over the boat or vehicle’s volume levels.
Features:
- Comes with a hide-away processor unit and a half-DIN remote zone controller
- The preamp section allows for lower gain settings, increased noise rejection, and better sound
- The large knobs provide the easiest way of adjusting individual zone-level volumes
- Includes amp remote turn-on output
- Includes customizable labels for naming your zones
- Comes with all installation hardware, and the hardware required to surface- or flush-mount the remote zone controller
Technical Specifications:
- Rated Output Per Channel, All Channels Driven (1kHz,14.4v DC, THD < 1%) - 8V
- Input Impedance - 10,000 Ohms
- Output Impedance - 100,000 Ohms
- Frequency Response - 20-20,000Hz (±1dB)
Owner's Manual (pdf)
KXMA Zone Volume Controller
Command precise volume in up to four independent zones on your boat or RV! This universal zone control distributes a stereo RCA signal from your media center/source unit to as many as four independent stereo RCA outputs.
The built-in line driver delivers a clean signal of up to 8 volts to each channel so your amplifier is getting the cleanest signal possible. Higher input voltage into your amplifier allows you to set your gains lower and keep system noise down for the cleanest sound possible!
KXMARLC is compatible with any amplifier that features pre-amp level inputs, and it’s perfect for large, multi-amplifier systems where you want ultimate control over the boat or vehicle’s volume levels.
Features:
- Comes with a hide-away processor unit and a half-DIN remote zone controller
- The preamp section allows for lower gain settings, increased noise rejection, and better sound
- The large knobs provide the easiest way of adjusting individual zone-level volumes
- Includes amp remote turn-on output
- Includes customizable labels for naming your zones
- Comes with all installation hardware, and the hardware required to surface- or flush-mount the remote zone controller
Technical Specifications:
- Rated Output Per Channel, All Channels Driven (1kHz,14.4v DC, THD < 1%) - 8V
- Input Impedance - 10,000 Ohms
- Output Impedance - 100,000 Ohms
- Frequency Response - 20-20,000Hz (±1dB)
Owner's Manual (pdf)
KXMA Zone Volume Controller
Command precise volume in up to four independent zones on your boat or RV! This universal zone control distributes a stereo RCA signal from your media center/source unit to as many as four independent stereo RCA outputs.
The built-in line driver delivers a clean signal of up to 8 volts to each channel so your amplifier is getting the cleanest signal possible. Higher input voltage into your amplifier allows you to set your gains lower and keep system noise down for the cleanest sound possible!
KXMARLC is compatible with any amplifier that features pre-amp level inputs, and it’s perfect for large, multi-amplifier systems where you want ultimate control over the boat or vehicle’s volume levels.
Features:
- Comes with a hide-away processor unit and a half-DIN remote zone controller
- The preamp section allows for lower gain settings, increased noise rejection, and better sound
- The large knobs provide the easiest way of adjusting individual zone-level volumes
- Includes amp remote turn-on output
- Includes customizable labels for naming your zones
- Comes with all installation hardware, and the hardware required to surface- or flush-mount the remote zone controller
Technical Specifications:
- Rated Output Per Channel, All Channels Driven (1kHz,14.4v DC, THD < 1%) - 8V
- Input Impedance - 10,000 Ohms
- Output Impedance - 100,000 Ohms
- Frequency Response - 20-20,000Hz (±1dB)
Owner's Manual (pdf)
| SKU | CWR-102014 |
|---|---|
| Price | $329.99 |
| Brands | KICKER |
| Manufacturer's Suggested Retail Price | $359.99 |
