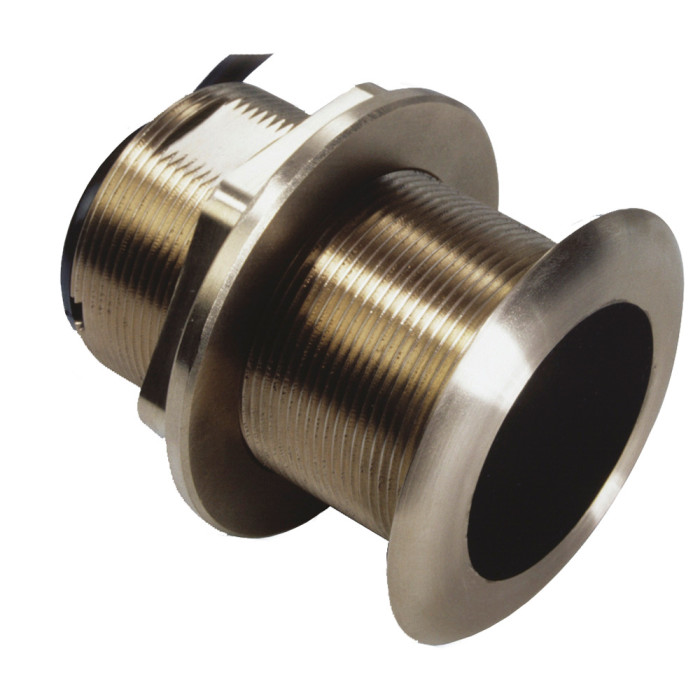

Navico B60-20, 20 Degree Tilted Element Transducer [B60-20-BL]
Our Price: $374.99
What's this?
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Specifications:
- Pins: 7
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
- UPC: 421945344354
Owner's Manual (pdf)
Brochure (pdf)
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Specifications:
- Pins: 7
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
- UPC: 421945344354
Owner's Manual (pdf)
Brochure (pdf)
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Specifications:
- Pins: 7
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
- UPC: 421945344354
Owner's Manual (pdf)
Brochure (pdf)
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Specifications:
- Pins: 7
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
- UPC: 421945344354
Owner's Manual (pdf)
Brochure (pdf)
| SKU | CWR-31539 |
|---|---|
| Price | $374.99 |
| Brands | Navico |
| Manufacturer's Suggested Retail Price | $419.99 |
| UPC | 421945344354 |
