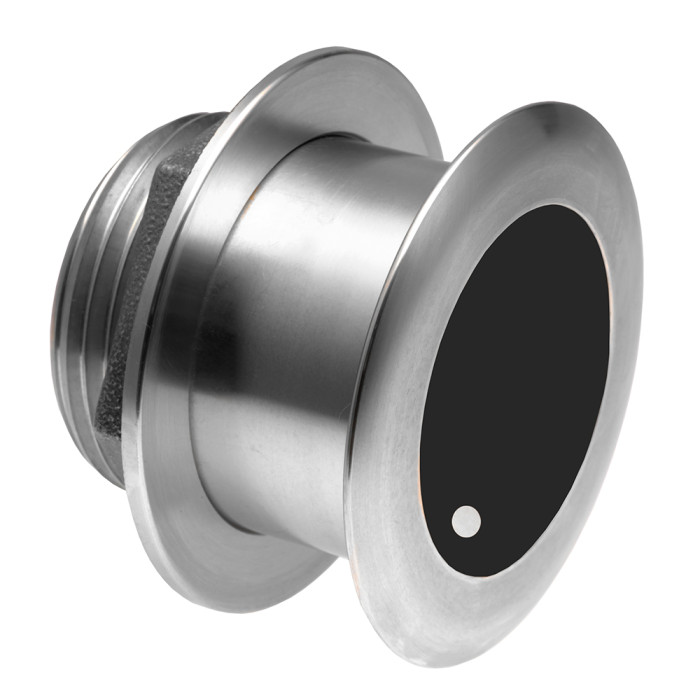

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]
Our Price: $1,754.00
xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° - 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 33'
- Pins: 9
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 9420024161937
xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° - 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 33'
- Pins: 9
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 9420024161937
xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° - 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 33'
- Pins: 9
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 9420024161937
xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° - 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 33'
- Pins: 9
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 9420024161937
| SKU | CWR-65017 |
|---|---|
| Price | $1,754.00 |
| Brands | Navico |
| Manufacturer's Suggested Retail Price | $1,754.00 |
| UPC | 9420024161937 |
