Newmar SS Switch - 7.5 INV AC Selector Switch [SS SWITCH7.5INV]
Our Price: $292.00
What's this?

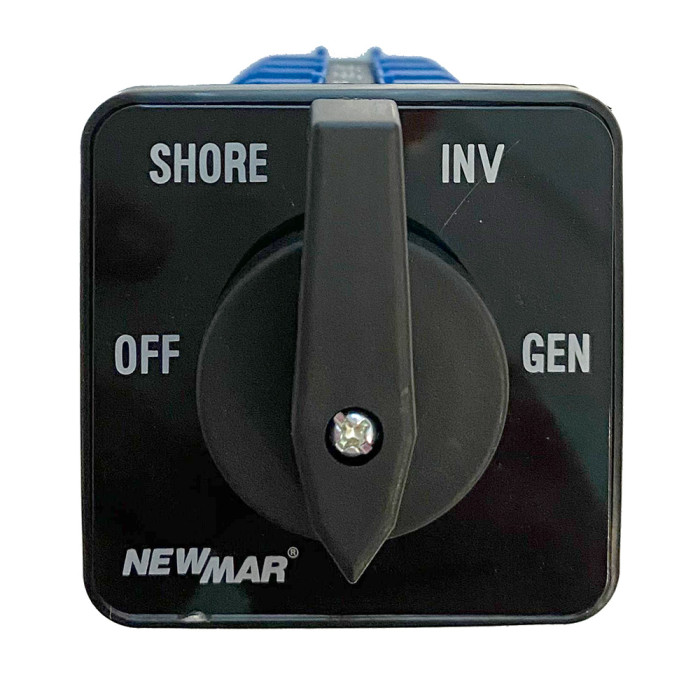

SS Switch - 7.5 INV AC Selector Switch
This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- May be rear-mounted in a panel with a thickness up to 1/4”
- For vessels with onboard generator and inverter
Specifications:
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 3 + “OFF”
- Standard Plate Markings: OFF-GEN-INV-SHORE
- Depth Dimensions: 3-1/2 in.
Specifications:
- Box Dimensions: 5"H x 5"W x 9"L WT: 1.35 lbs
SS Switch - 7.5 INV AC Selector Switch
This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- May be rear-mounted in a panel with a thickness up to 1/4”
- For vessels with onboard generator and inverter
Specifications:
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 3 + “OFF”
- Standard Plate Markings: OFF-GEN-INV-SHORE
- Depth Dimensions: 3-1/2 in.
Specifications:
- Box Dimensions: 5"H x 5"W x 9"L WT: 1.35 lbs
SS Switch - 7.5 INV AC Selector Switch
This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- May be rear-mounted in a panel with a thickness up to 1/4”
- For vessels with onboard generator and inverter
Specifications:
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 3 + “OFF”
- Standard Plate Markings: OFF-GEN-INV-SHORE
- Depth Dimensions: 3-1/2 in.
Specifications:
- Box Dimensions: 5"H x 5"W x 9"L WT: 1.35 lbs
SS Switch - 7.5 INV AC Selector Switch
This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- May be rear-mounted in a panel with a thickness up to 1/4”
- For vessels with onboard generator and inverter
Specifications:
- Amperage @ 115/230V: 63
- Number of Poles: 2
- Switch Positions: 3 + “OFF”
- Standard Plate Markings: OFF-GEN-INV-SHORE
- Depth Dimensions: 3-1/2 in.
Specifications:
- Box Dimensions: 5"H x 5"W x 9"L WT: 1.35 lbs
| SKU | CWR-102428 |
|---|---|
| Price | $292.00 |
| Brands | Newmar Power |
| Manufacturer's Suggested Retail Price | $362.00 |
