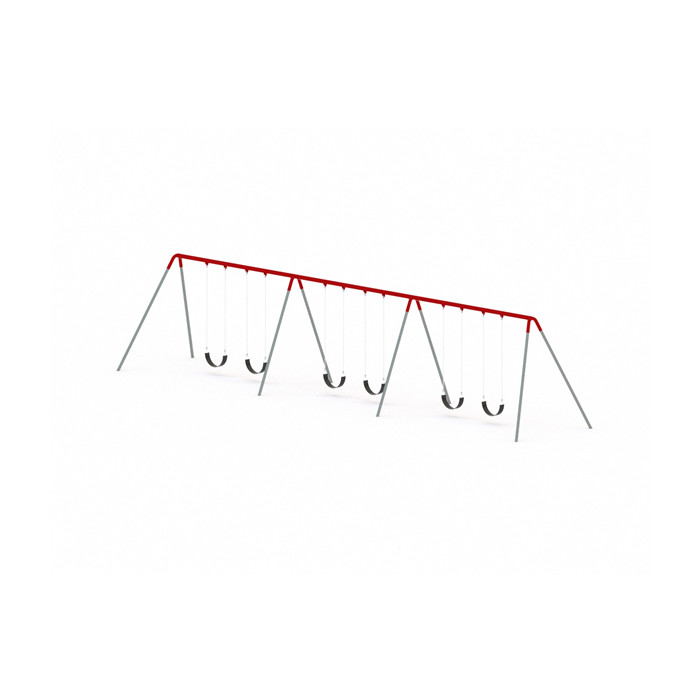

Bi-Pod Triple Bay Swing Set Blue, Green, Red, Brown Description: Triple Bay Bi-Pod Swing
Bi-Pod swings offer a high end look without the cost.
8' Top Rail
Includes galvanized uprights.
Use Zone:
Three Bay: 32' x 49'-11"
Description:
The Bi-Pod swing promotes upper body and leg strength, while also fine-tuning balance, posture, and agility.
- 8' High Bi-Pod Swing
- Easy-to-assemble swing that is as affordable as it is durable
- Available in unlimited number of bays to offer more swinging fun for all children.
- Features galvanized 2.38" O.D. posts and powder coated 3.5" O.D. top rail
- Includes two slash-proof belt swing seats per bay
- Includes galvanized chains
- Full bucket seats available for younger children for additional cost.
Materials:
Cross Beam:
Color Options: Blue, Green, Red, Brown
coated, 3.50” OD, 13
gauge steel tubing.
Corner Couplings:
Color Brown powder
coated, 2.875” OD, 7
gauge steel tubing.
Uprights: 2.38” OD, 11
gauge steel tubing. Seats: 5/16” Thick x 6” x 24”
Wide Neoprene strap.
or
3/8” Thick x 9” Deep x 12”
Wide Neoprene full bucket.
Chain: 5/16” welded zinc coated
Hardware: 318 Stainless Steel
Truss-Head bolts, set
screws and Locknuts
Dimensions:
Overall Height: 96” High
Approximate Square Feet: 1364.3 sq ft
Actual Size: 8’-0” x 37’-11”
Actual Use Zone: 32’-0” x 49’-11”
Assembled Weight: 496 lbs
Fall Zone: Overhead fall zone views are
for planning purposes only. Please follow
guidelines as specified by the CPSC and
ASTM F1487
