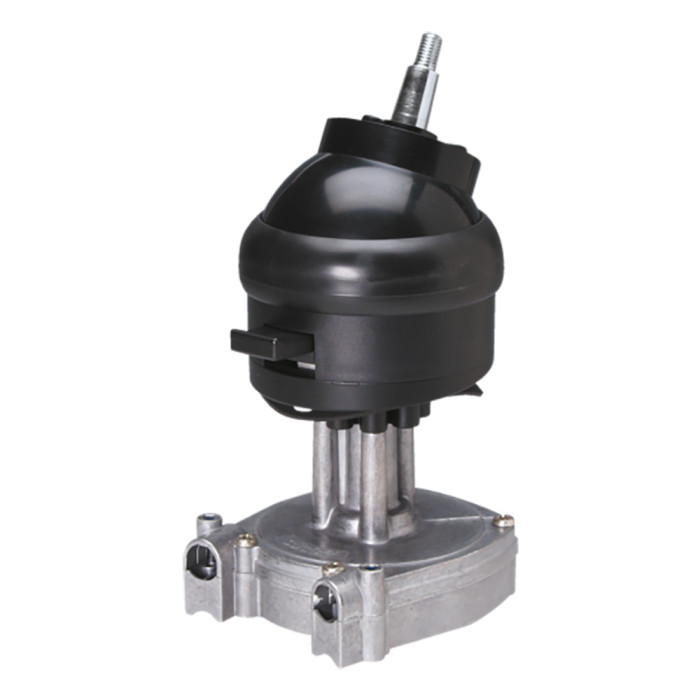

UFlex T83FC Zero Torq Rotary Helm Single Cable Steering [T83FC]

T83FC Zero Torq Rotary Helm Single Cable Steering

T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.

Features:

• Tilt range of 48° and five locking positions
• Fast connect, simple installation
• The tilt device eliminates under-dash movement
• Standard 3/4” tapered shaft – stainless steel
• All stainless steel cable output ends
• Corrosion resistant materials
• T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
• For boats faster than 50 mph, our hydraulic steering systems are recommended
• Optional steering wheel
• Engine connection kits
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

Specifications:

• M66 steering cable stroke: 228 mm (9")
• Lock-to-lock steering wheel turns: Approx. 3,8
• Max. dash depth: 25,4 mm (1")
• Max. steering wheel diameter: 406 mm (16")
• Min. steering cable bend radius: 200 mm (7.9")

Specifications:

• Box Dimensions: 7"H x 8"W x 11"L WT: 5.7 lbs
• UPC: 702755021421
