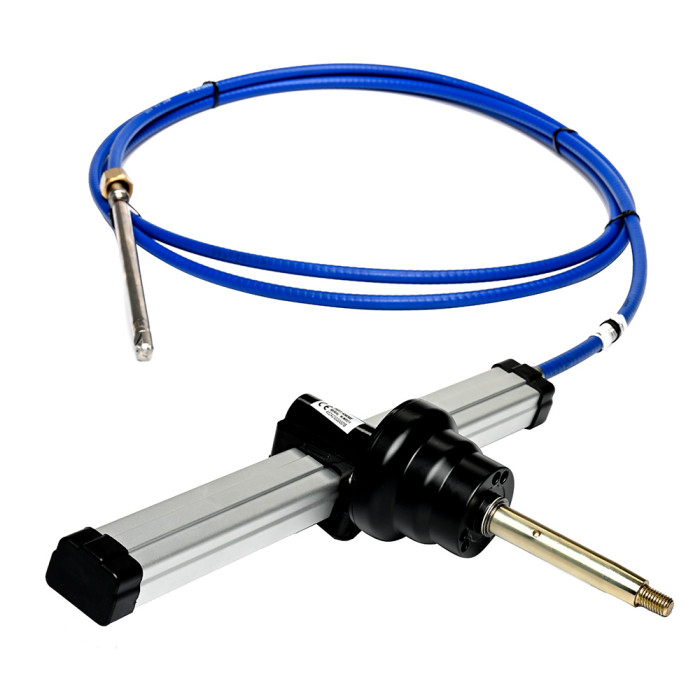

Uflex TM87 19' Rack Pinion Steering System [TM87OX19]

TM87 19' Rack & Pinion Steering System

Features:

• High-Efficiency Rack & Pinion Steering System
• Compatible with SSC134, SSC135, and SSC154 competing cables and SH91610p helm

Kit Includes:

• G87 Front Mount Helm
• TM87XLL High-Efficiency Cable
• X34 Mounting Bezel

Performance Components:

• All stainless steel cable output ends
• Made of corrosion-resistant materials
• Standard 3/4" tapered shaft
• 3.7" cable stroke
• 3.3 turns lock-to-lock
• 7.9" cable bend radius

TM87 Steering Systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. Optional Steering Wheel. Exceeds ISO 8848 safety standards. Exceeds ABYC P17 safety standards.

• Universal replacement steering cable for standard and non-feedback Rack & Pinion Steering Systems.
• No need to drill holes: X34 bezel fits the same bolt pattern as your existing helm.
• Use your existing steering wheel: 3/4" tapered shaft fits most steering wheels up to 16" (406mm) diameter
• Fast, simple, easy cable installation: Universal replacement for standard, ZTF, and no feedback rotary helms

Specifications:

• Box Dimensions: 3"H x 18"W x 27"L WT: 10.75 lbs
• UPC: 702755059202
